Every renovation eventually arrives at a doorway with two different floors on either side. A proper flooring transition strips guide saves you from the two classic outcomes, which are a mismatched piece of aluminum from the hardware store or a gap wide enough to lose a sock in.
Transition profiles are small, cheap and weirdly important. They protect edges, hide expansion gaps and stop people from tripping, and a good flooring transition strips guide is mostly about matching the right profile to the right situation.
Why Any Flooring Transition Strips Guide Starts With Movement
Floating floors move. Wood expands in humid Ontario summers and contracts in dry winters, and vinyl responds to temperature swings the same way.
That movement needs somewhere to go, which is the expansion gap at doorway openings and along every wall. Covering that gap without pinning the floor down is the entire job of a transition profile, and an expansion gap at doorway locations pinched by a screwed down strip becomes a buckle by August.
The Main Profiles
T Moulding vs Reducer

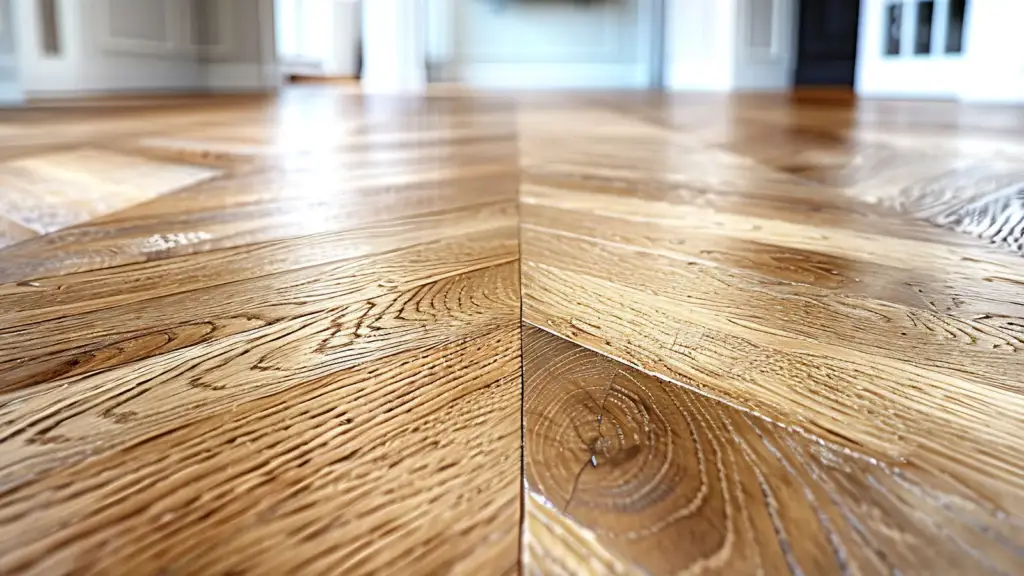

The t moulding vs reducer question comes up on almost every job. A T shaped profile joins two floors of the same height, sitting between them like a bridge with a stem that drops into the gap.
A reducer slopes from a taller floor down to a shorter one, which is what you need between hardwood and vinyl sheet, or between laminate and a thin tile. Getting t moulding vs reducer right is simply a matter of measuring both surfaces before ordering.
End Cap and Threshold Pieces
An end cap, sometimes called a square nose, finishes a floor where it meets a fixed surface such as a sliding door track, a fireplace hearth or an exterior threshold.

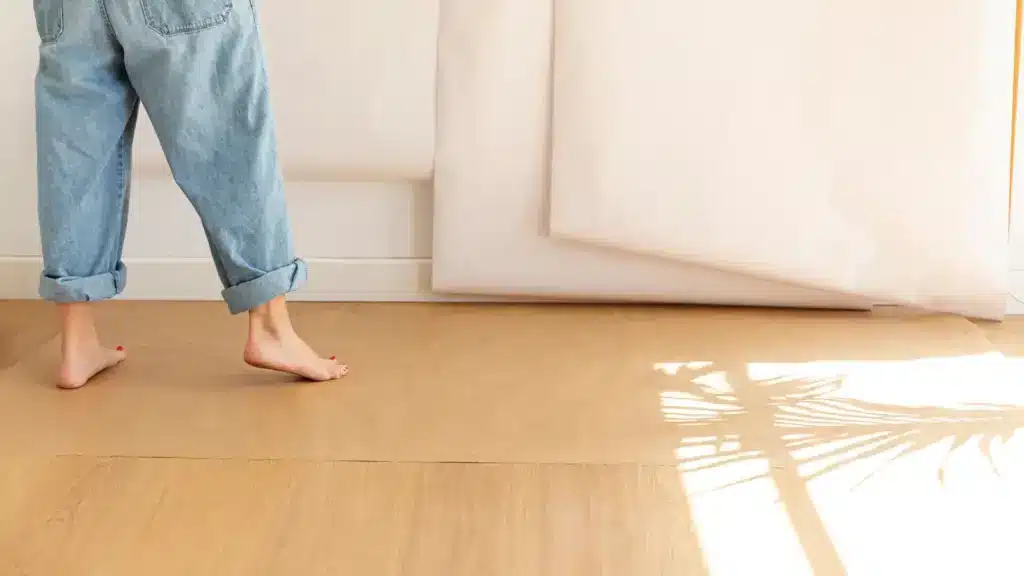

A threshold between rooms may also be a purpose made piece of wood or stone, particularly in older homes around Kitchener where original oak thresholds are still in place. Matching a new floor to an existing threshold between rooms often looks better than replacing it.
Stair Nose Moulding
Stair nose moulding wraps the leading edge of a step, and it is the profile most often forgotten in a quote. It carries real traffic and real safety weight, so it needs to be firmly fastened rather than floating.
Stair nose moulding also has to match the floor in colour and finish, which means ordering it with the flooring rather than three weeks later when the batch has changed.
Height Differences
Height Difference Flooring Situations
A height difference flooring problem shows up constantly in homes with tile in the entry and hardwood in the hall, or with a new floating floor beside old sheet vinyl.
Small differences under about 3/8 of an inch are usually handled with a simple reducer. Larger ones need either a built up subfloor on the lower side or a custom milled piece. Ignoring a height difference flooring issue produces a lip that catches toes and vacuum wheels equally.
- Measure both finished floor heights before ordering any profile.
- Check the door swing clearance, since a taller new floor can stop a door from opening.
Doorways and Long Runs
Doorway Transition Strip Placement
A doorway transition strip normally sits directly under the closed door, so each room reads cleanly from inside. That placement also hides the joint from both sides.
When the same floor continues through, many homeowners ask whether a strip is needed at all. Technically a floating floor should break at doorways and at runs longer than about 40 feet, though many installations run continuously across open concept spaces. A doorway transition strip in those cases is insurance, not decoration.
Continuous runs look better. They also carry more risk, and a floor that buckles in a hallway is not a small repair.
Carpet Meets Hard Surface
Carpet to Hardwood Transition
The carpet to hardwood transition usually uses a tack strip and a metal or wood profile that grips the carpet edge while covering the hardwood edge.
Done properly it lies flat and lasts for years without lifting. A sloppy carpet to hardwood transition frays within a season, especially in a busy hallway, and it is one of the more common complaints in rental turnovers.
Materials and Finish
Profiles come in matching laminate or vinyl, solid wood, aluminum and stainless steel. Matching profiles are the safest visual choice for a home, while metal reads as more contemporary and holds up better in busy commercial spaces.
Colour matching matters more than most people expect, particularly with lighter oak tones where a slight difference in undertone reads as a mistake. A slightly off transition draws the eye straight to it, which is why ordering everything from the same supplier and the same production run is worth the small hassle.
Installation Notes
Track systems are the norm now on most residential jobs. A metal channel gets fastened to the subfloor, not the flooring, and the profile clips into it, so the floor underneath can still move.
Never glue a transition down to both floors at once. That converts two independent floating floors into one very large one, and neither of them was designed for that.
A Quick Sanity Check
Before installation day, confirm every doorway has a profile assigned, every stair edge has a nose piece, and every height change has a plan. The team at Petun Flooring includes these on a takeoff for exactly this reason, since transitions are the most common item missing from a rough quote.
Wrapping It Up
Same height, use a T. Different height, use a reducer. Fixed obstacle, use an end cap. Step edge, use a stair nose. Carpet meeting wood, use a proper carpet profile with a tack strip.
That short list covers nearly every home in the region. Working through this flooring transition strips guide before ordering means the last hour of the project goes smoothly instead of turning into a hardware store run at 4 p.m. on a Friday.
